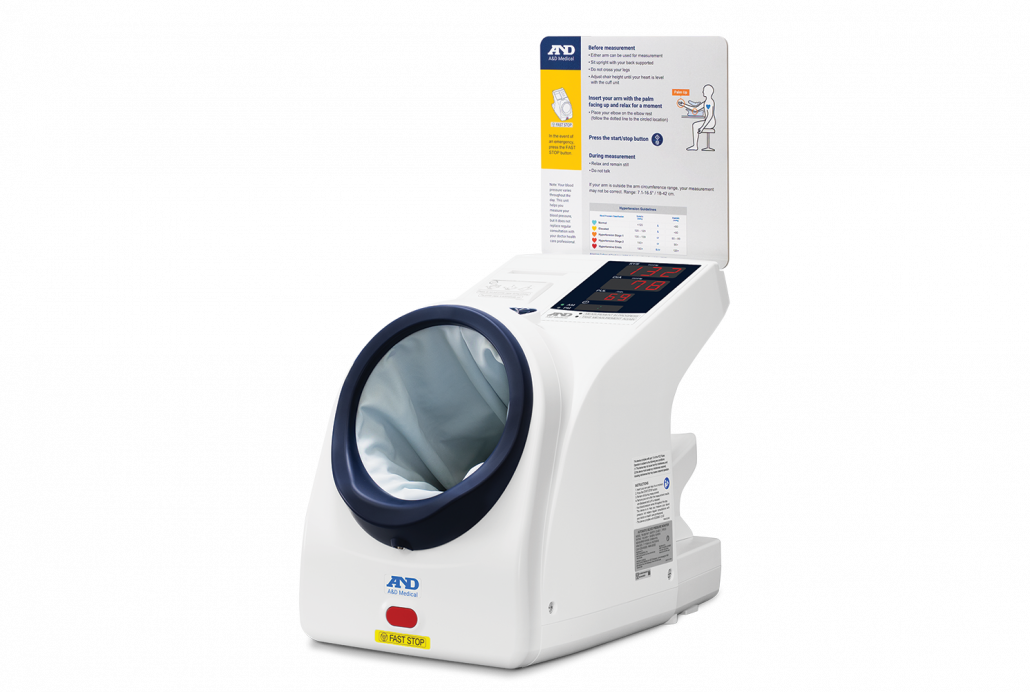

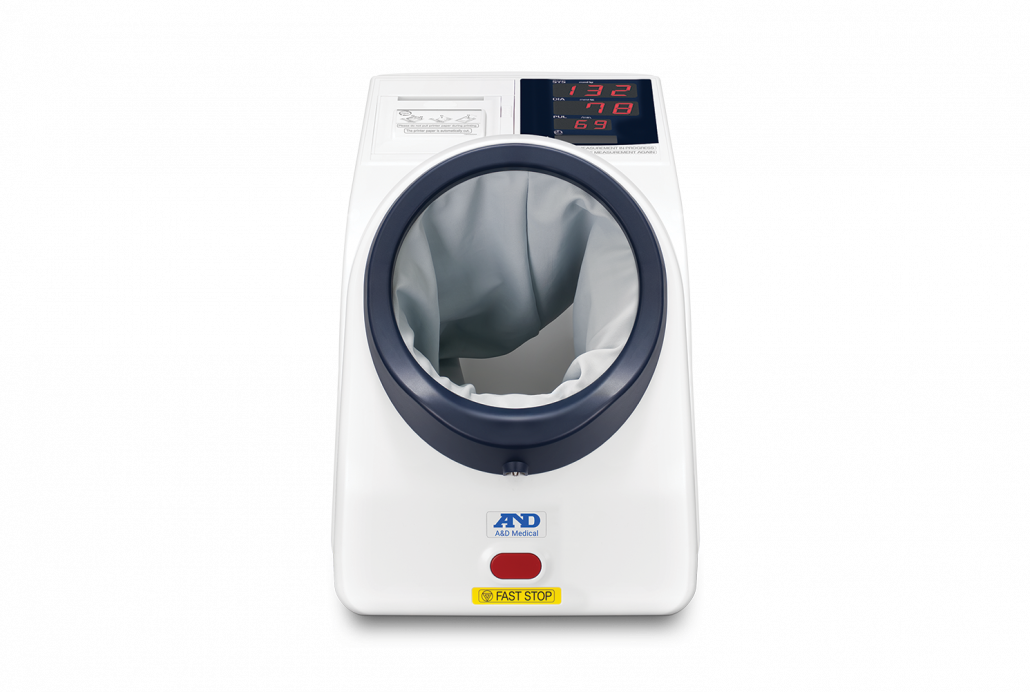

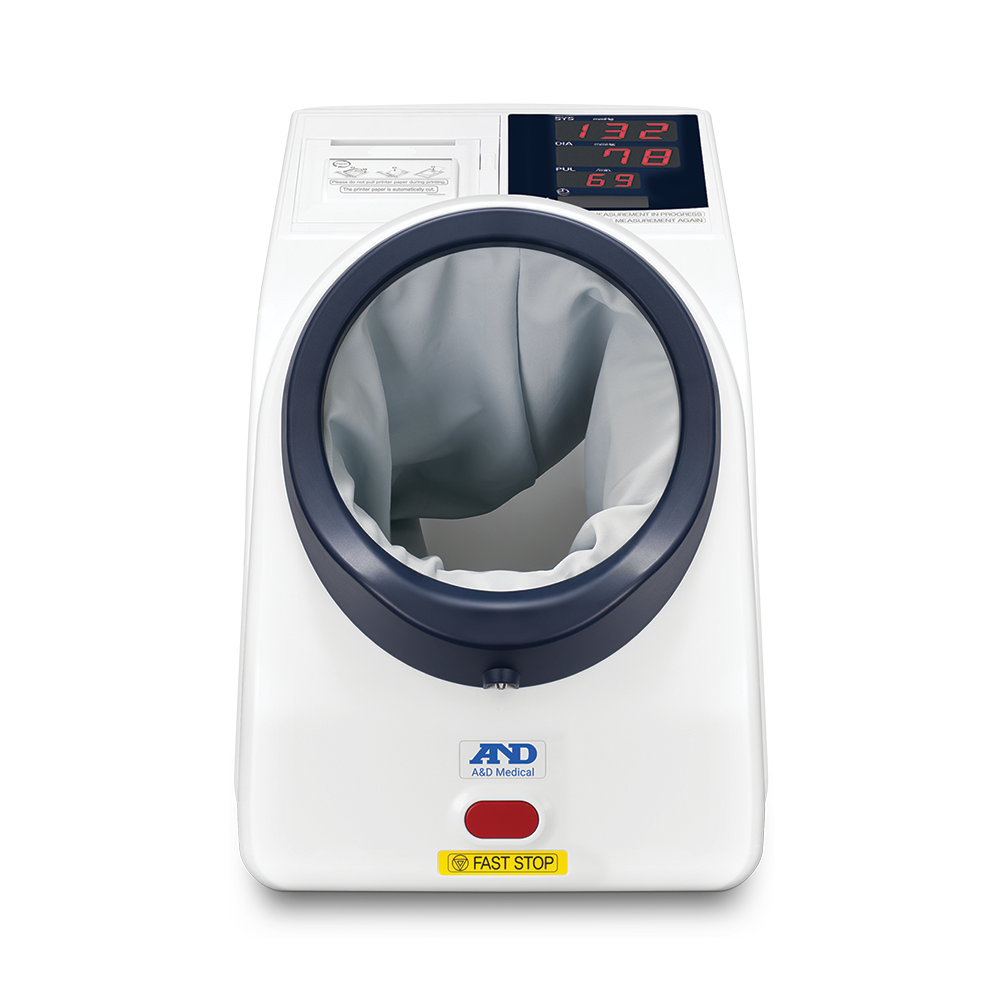

AUTOMATIC Blood Pressure Kiosk

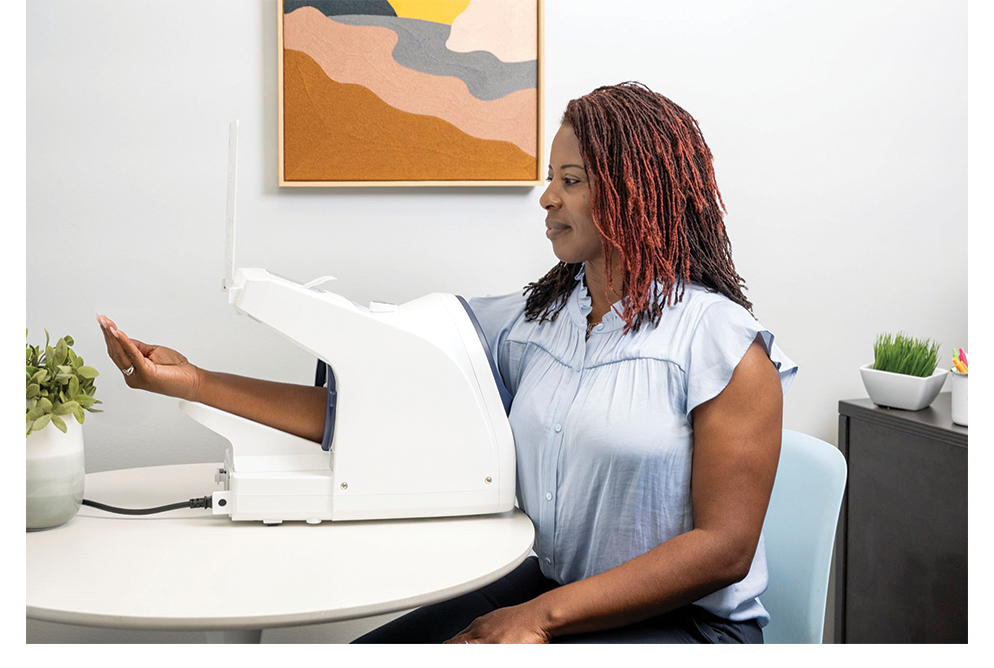

Tabletop blood pressure kiosk is a compact powerhouse ideal for pharmacies, mobile clinics, and workplace screenings. Designed for durability and frequent use, it allows a wide range of patients to easily self-measure their blood pressure and obtain accurate results

SKU: TM-2657WP

REQUEST INFORMATION

Website-Icons_OneButtonOp

Website-Icons_IHB

Website-Icons_antibacterialCuff

Website-Icons_2yearWarranty

DETAILS

Trusted Accuracy

Clinically validated for accuracy
Indicates if you have an Irregular Heartbeat (IHB) during a measurement

Innovative Technology

Unique cuff inflation system that stabilizes the arm and customizes cuff circumference to fit the patient
Accommodates arm circumferences ranging from 7.1-16.5″ / 18-42 cm
Use either the right or left arm

Fast and Easy Operation

One button operation
Integrated instruction panel
Stores 200 measurements in memory
Date and Time stamp to assist in trending

Flexible Applications

Compact design that can be used stand alone, part of a health screening station or kiosk system
Customizable printout of reading
Optional connectivity to integrate seamlessly

Sanitary Solution

Anti-bacterial cuff
Easily replaced

Warranty

2 year warranty

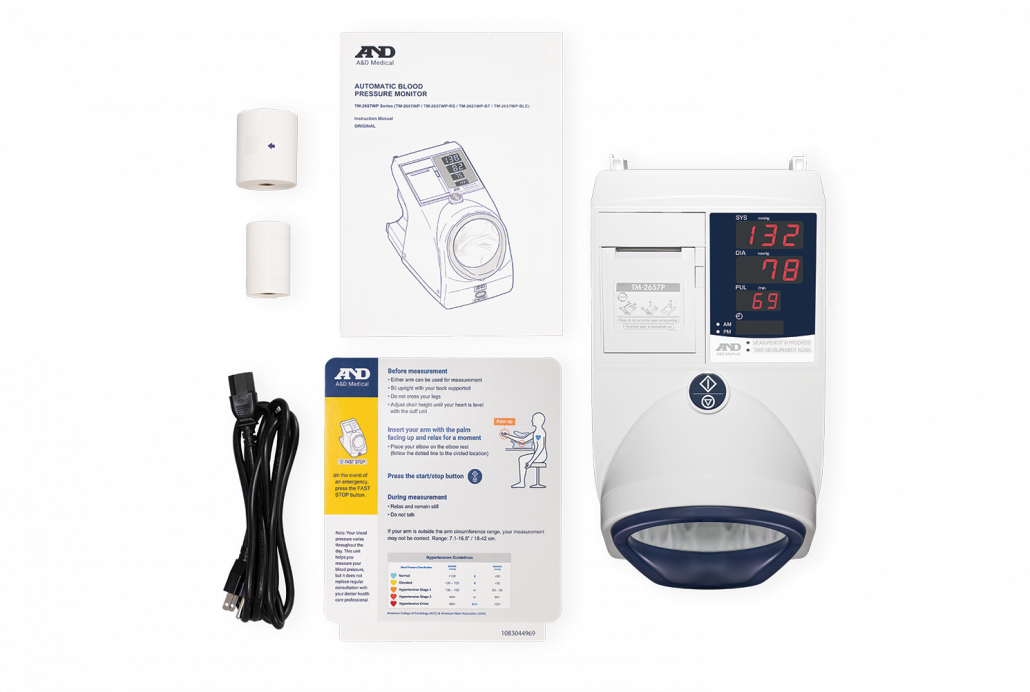

IN THE BOX

SPECIFICATIONS

Measurement Accuracy	Pressure: ±3 mmHg
Measurement Accuracy	Pulse: ±5%
Clinical Test	EN1060-4 :2004
Arm Circumference	7.1-16.5″ / 18-42 cm
Unit Dimensions (WxDxH, inches)	9.5 x 15.4 x 12.8”
Weight (Lbs)	18 lbs
Memory	200
Measurement Range	Pressure: 0-299 mmHg
	Systolic Pressure: 40-270 mmHg
	Diastolic Pressure: 20-200 mmHg
	Pulse: 30-240 bpm
Power Supply	100 – 240 V, 50 – 60 Hz
Wired Communication	Optional RS-232C
Wireless Communication	Optional Bluetooth
Warranty	2 Years

DOWNLOADS

ACCESSORIES

VALIDATIONS

Protocol	Result	Citation
BHS	A/A	Zeng, W., et. al. (2013). Validation of the Fully Automated A&D TM-2656 Blood Pressure Monitor According to the British Hypertension Society Protocol (Issue 18), pp. 223-226.
AAMI	Pass, Recommended	dabl Educational Trust
BHS	A/A, Recommended	dabl Educational Trust

Note: clinical equivalence to TM-2656 series

Read more about Clinical Validation and see our validations by device.
